JOANNA-5 PREMIUM – perfect solution for haskap harvesting

JOANNA-5 PREMIUM harvester is an ideal solution for picking fruits from young and small bushes as well as from very high bushes with long stems. The covers and seal system eliminates fruit losses. The capability of the harvester to pick up high branches is found to be an important benefit for harvesting high bushes like aronia, hip rose, saskatoons, and other high-bush berries up to 3 m.

JOANNA PREMIUM compared with the JOANNA-5 harvester has modified construction for more effective berry harvesting in both small and high bushes. The harvesting mechanisms guarantee minimal damage to plants and berries and high harvest efficiency.

Some facts about the JOANNA-5 PREMIUM harvester:

• - has a wider horizontal conveyor by 70 cm (2 ft 3 in). There is more free space before the shaking head to minimalize the area where dropping berries could fall onto the ground,
• - has a longer shaker for effective harvest from high bushes,
• - higher bushes mean bigger crops. For this purpose, the harvester has a bigger platform capacity which can hold two 500 kg (1,100 lbs) boxes one after the other,
• - higher output: from 0,25 to 0,35 ha/h (0,6-0,8 ac/h),
• - has a longer longitudinal conveyor by 30 cm (1 ft) for more comfortable 500 kg (1,100 lbs) boxes filling,
• - has a possibility to pick up berries in big 500 kg (1,100 lbs) and small 10-20 kg (20-40 lbs) boxes
• - equipped with a hydraulic drawbar for the tractor's lower hitch, with smooth tilt adjustment and adjustable hitch height,
• - equipped with an oil cooler with an electric engine,
• - equipped with an adjustable speed cleaning ventilator,
• - equipped with an adjustable speed cleaning ventilator and independent hydraulic system for working drives.

If You need more information about this model of haskap harvester please contact Us.



TECHNICAL DATA

Parameter	Metric	Imperial
Output	0,15-0,25 ha/hour	0,4 acre/hour–0,6 acre/hour
Working speed	1,1–1,7 km/h	0,7–1,1 mph
Min. fruit harvesting height	20 cm over the ground	8" over the ground
Fruit collection	big 500 kg totes or small 10-20 kg boxes	big 1,100 lbs totes or small 20-40 lbs boxes
Load capacity of the working platform	1150 kg	2,535 lbs
Weight	1500 kg	3,300 lbs
Accuracy of harvest	over 98%
Work drives	hydraulic, fully adjustable, with oil cooler and thermostat
Power source	540 rpm PTO
Min. required tractor power	55 HP
V-shape fruit harvesting system with one shaker.
Independent adjustment of the travel speed conveyors.





Learn more about the Joanna-5 Premium berry harvester here.

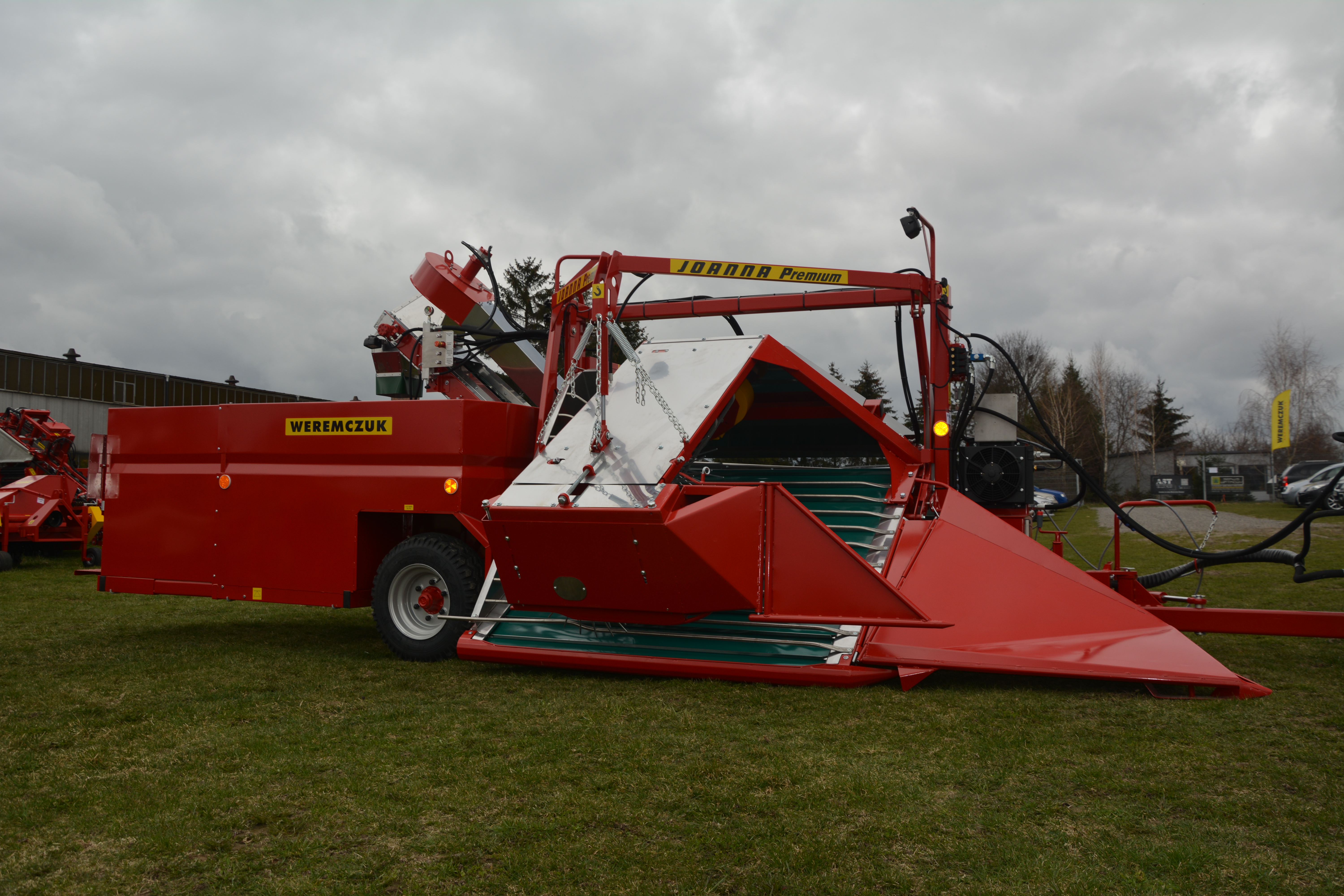

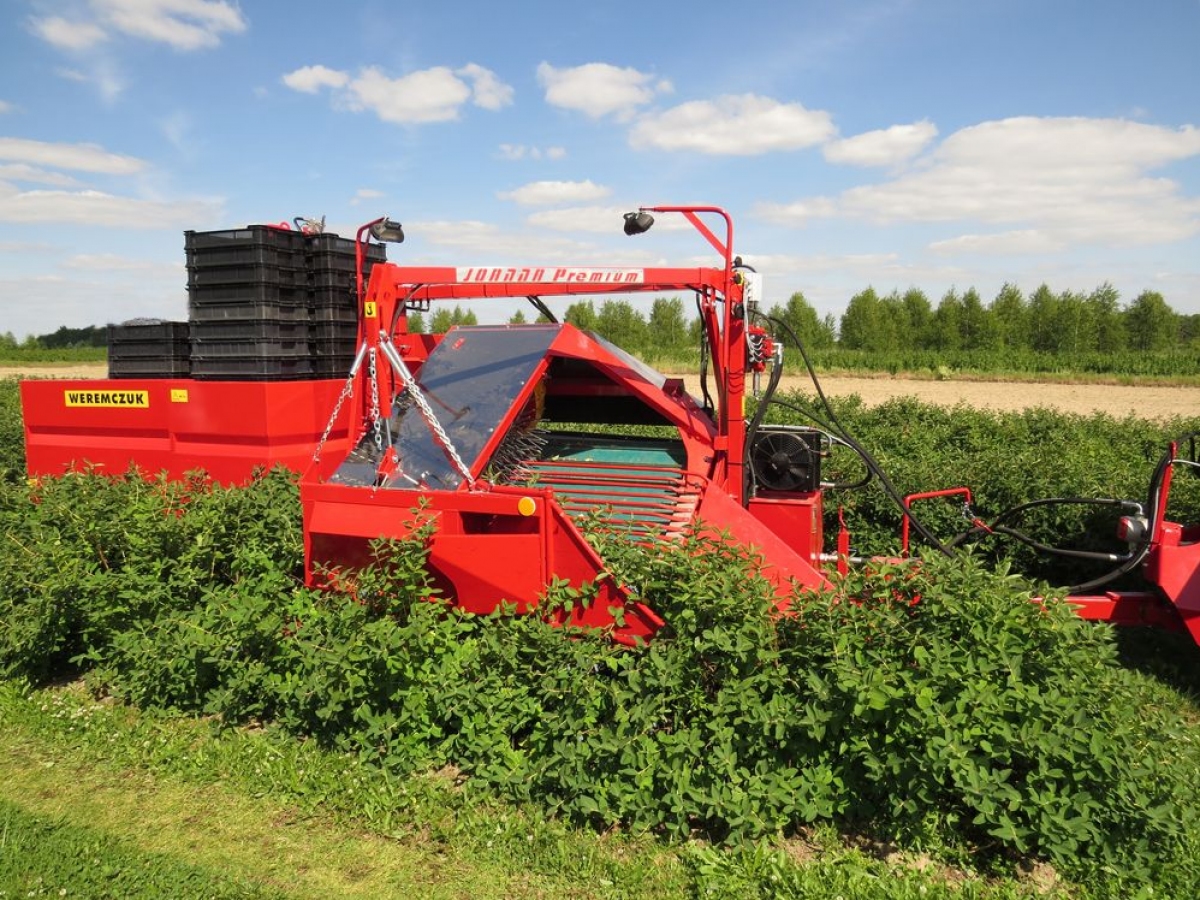

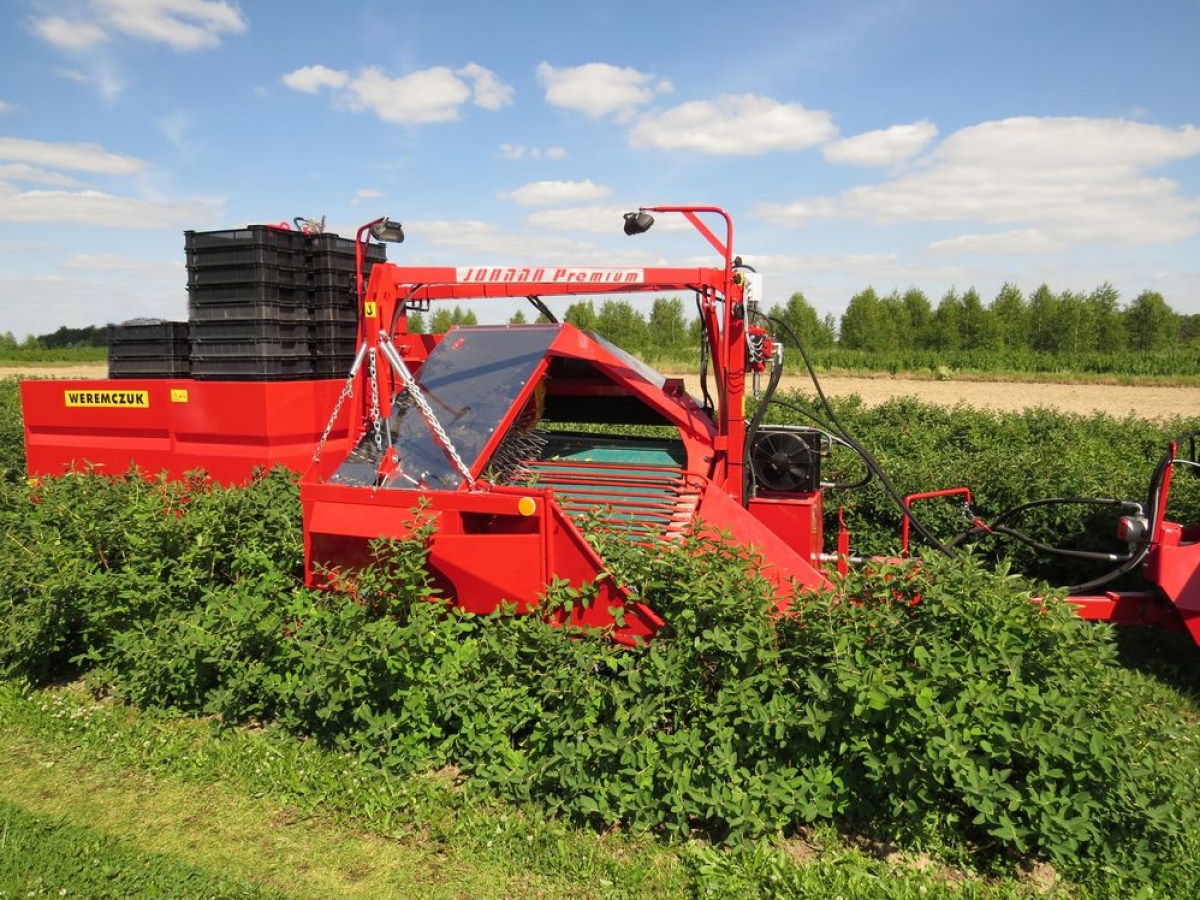

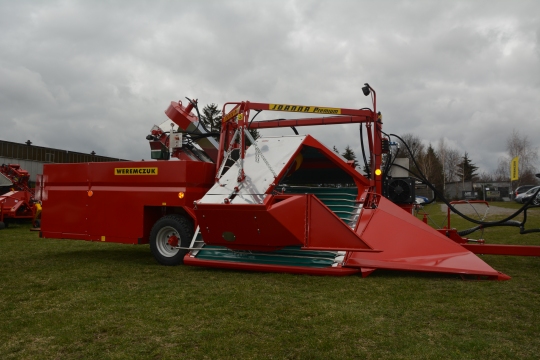

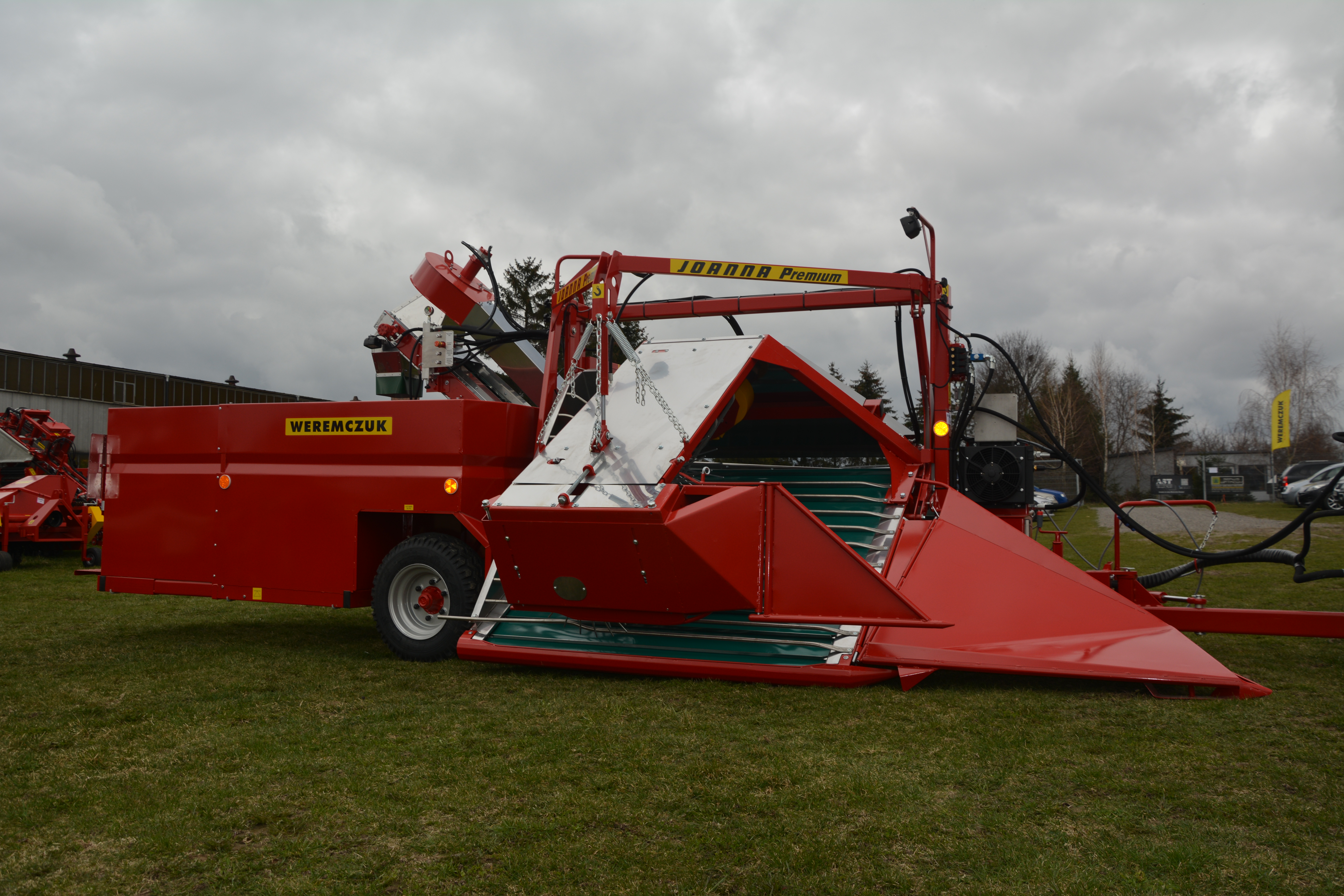

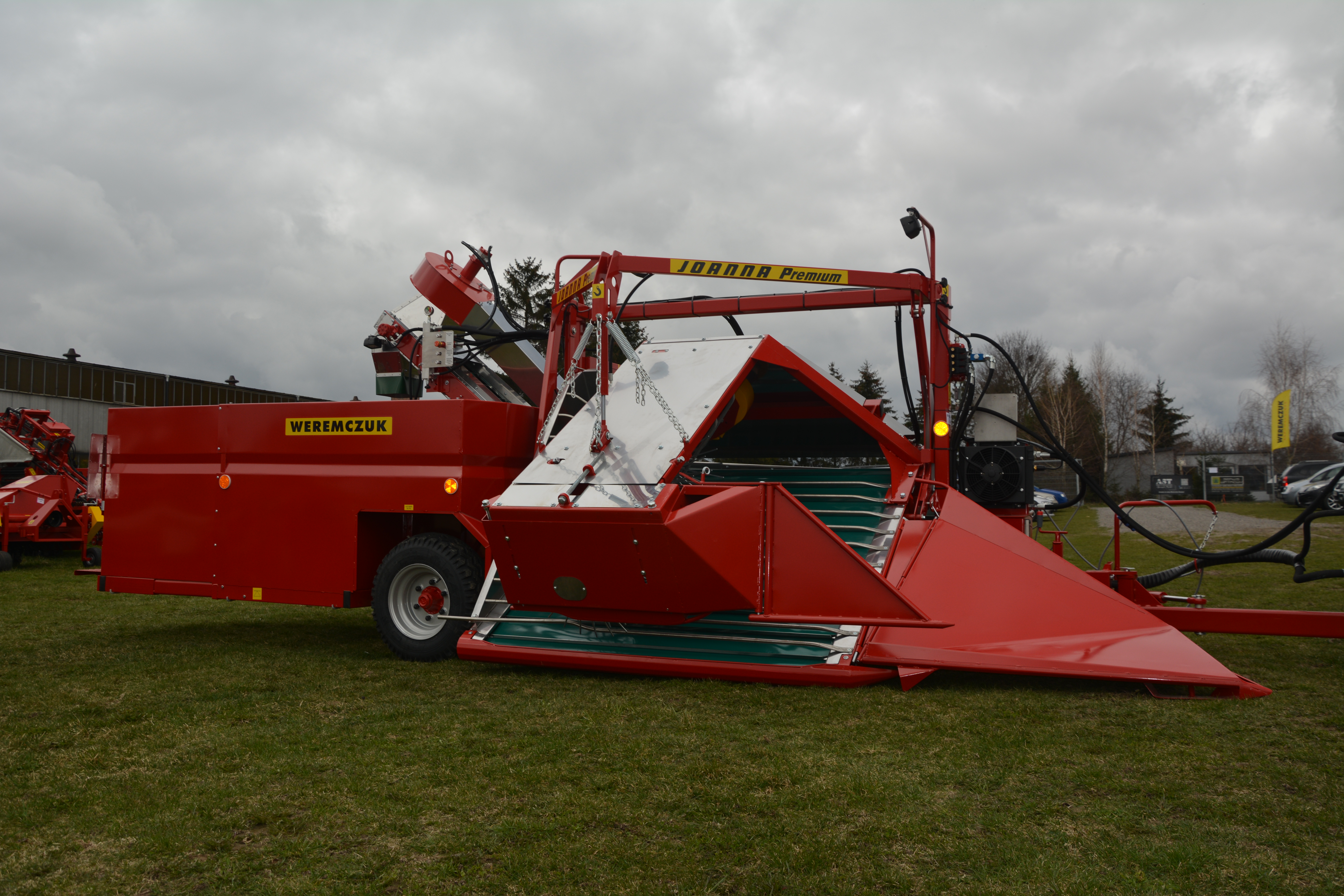

Gallery of JOANNA PREMIUM (previous model) and JOANNA-5 PREMIUM on different berry plantations.

---
