VICTOR/Z

VICTOR/Z harvester - Ideal for large plantations



Do you have more than 25 hectares (60 acres) of the plantation? If Yes, we have a great solution for You. Please learn more about the VICTOR/Z harvester.

VICTOR/Z is the harvester adjusted to work on several-dozen-hectare-plantations where berry bushes are planted in espaliers without any supports.  The minimum spacing of rows is 3,50 m (11 ft 2 ac). Such conditions make it possible to obtain a very good quality of fruits and a high fruit yield.

It is suitable for picking berries from bushes starting from the second year of fruit-bearing. Of course, berry harvesting in the first year of fruit-bearing is also possible but the accuracy of harvest can be lower than 98%.
You can use special-design attachments for harvesting berries during the second year of fruit-bearing. Such attachments considerably increase the precision of harvesting.

“VICTOR Z” harvester is equipped with the fruit harvesting system based on a pair of units for shaking off fruit that is arranged with regard to each other in the shape of the letter “V”. The combination of this system with the optimal geometry of flow of fruit bushes through the unit for shaking off fruits and the use of self-aligning suspension system guarantees almost 100% harvesting effectiveness, without any damage to fruit bushes, and makes it possible to harvest up to 20 ton of very good quality fruits from one hectare.

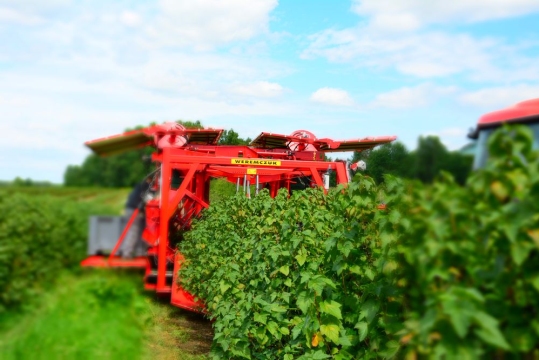

currant-harvester


TECHNICAL DATA
Technical data Metric Imperial
Harvesting capacity 0,3 - 0,6 ha/hour 0,75 acre/hour - 1,5 acre/hour
Output 3000 kg/hour 6,600 lbs/hour average
Min. fruit harvesting height 20 cm over the ground harvest 8" over the ground harvest

Fruit collection

big 500 kg totes
or small 10-20 kg boxes

big 1,100 lbs totes
or small 20-40 lbs boxes

The load capacity of the working platform
2000 kg 4,409 lbs
Weight                                 4500 kg 9,921 lbs
Accuracy of harvesting more than 98%
Working drives   hydraulic, fully adjustable,
with oil cooler and thermostat
Powered by 540 PTO
Min. required power of tractor's power    60 HP
Working driving speed 0,2 km/h
Fruit harvesting system special V-shaking system, two shakers
Adjustable Fully adjustable hydraulic drives and conveyors' speed
